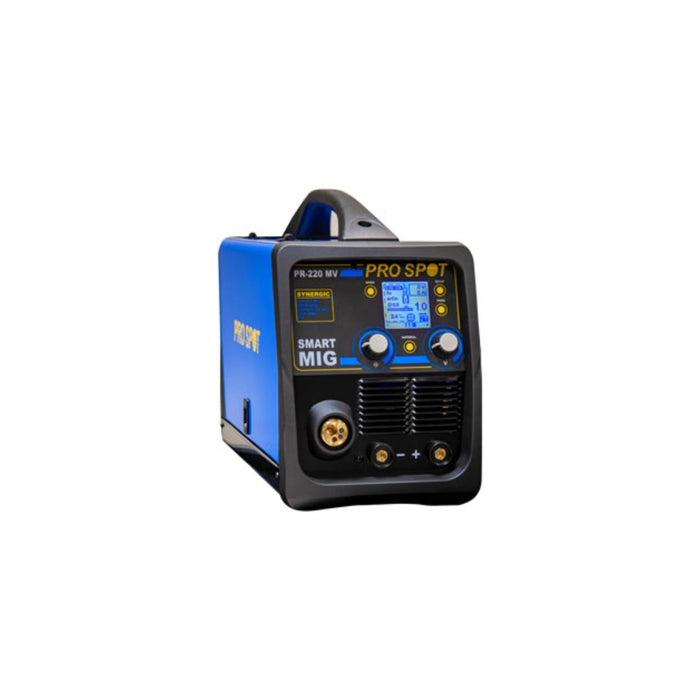

PR-220MV | Synergic MIG Welder

Components List | Brochure

The PR-220MV is a microprocessor-controlled, multi-process inverter Welder. All functions can be easily selected on the front panel. The digital LCD display shows the welding voltage and current and all the parameters selected. The PR-220MV is ideal for auto body shops, sheet metal fabrication, light maintenance and repair at home, on the ranch, or in the shop.

Features

Multivoltage: The PR-205MV comes with a Multi-Voltage Adapter that lets the user switch from 220V to 100V with a simple plug-in.

Easy Synergic Settings: Simply select the desired combination between wire diameter, gas type and thickness to be welded; and the wire speed will be adjusted automatically by the machine.

Added Mobility: The PR-205MV has an optional cart featuring a bottle bracket, accessory drawer and swivel casters, adding mobility and convenience.

Front Panel

The PR-220MV features an easy to use, automatic set up. A quick spin of the dial and the machine will automatically set all the parameters that you need. Take full control by using the dials to manually select settings as well.

1. Mode Button: Welding process selector key - MIG/MAG, TIG or Stick
2. Welder Screen: Digital screen to select welder settings
3. Setup Button: Select weld modes such as Synergic or Manual
4. Save and Recall Button: Save welding programs and recall them
5. Wire Speed Knob: Sets the wire speed
6. Material Button: Select which type of material you are welding, select the type of gas and the wire diameter
7. Voltage Knob: Sets in the voltage or material thickness

Compatible Welding Wires

The PR-220MV is 1 Spool and 1 Torch MIG Welder with the option to switch between multiple metal types including aluminum, steel and silicon bronze. Wire types that can be used with the PR-220MV:

• Aluminum 0.8 - 1.0 dia.
• Steel 0.6 - 1.0 dia.
• Flux core 0.8 - 1.0 dia.
• Stainless Steel 0.8 - 1.0 dia.
• Brazing 0.8 - 1.0 dia.

Features

• Multiple Welding Processes
• Inverter Technology
• Automatic Line Voltage Compensation
• Multi Voltage - 115volt/220 Volt Input
• Power Generator Friendly
