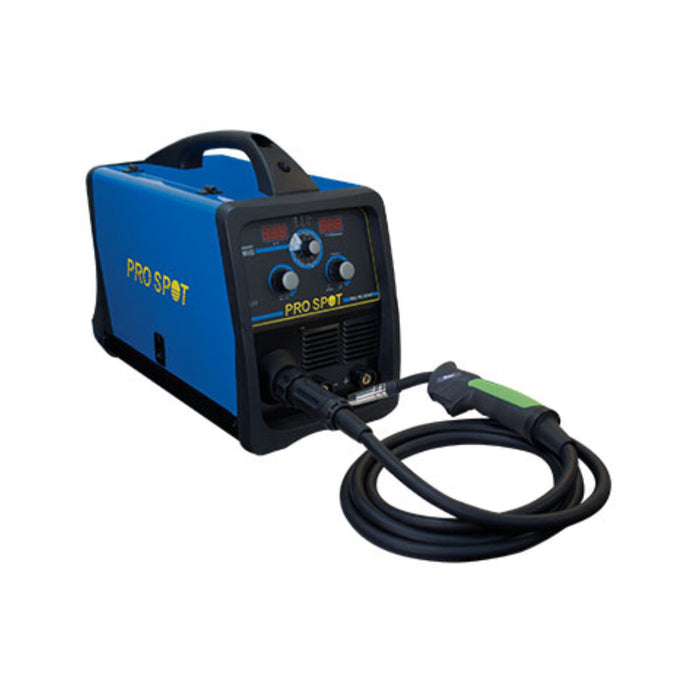

PR-205MV | Synergic MIG Welder
Delivery time
Components List | Brochure | Instruction Manual
The PR-205MV is the new compact, lightweight, microprocessor-controlled welding inverter suitable for MIG/MAG, MMA + TIG welding processes. The PR-205MV is unmatched in welding and gives the operator complete control in manual mode or makes the adjustments for you in synergic mode. The “synergy” helps the user adjust to the correct welding parameters. Simply select the desired combination of wire diameter, gas type, and thickness to be welded, and the machine will adjust the wire speed automatically.
Features
Multivoltage: The PR-205MV comes with a Multi-Voltage Adapter that lets the user switch from 220V to 100V with a simple plug-in.
Polarity Quick Change: Electrode Positive vs. Electrode Negative. The PR-205MV enables the welder to easily change the electrode polarity for use with solid wire (electrode positive) or flux core wire (electrode negative).
Easy Synergic Settings: Simply select the desired combination of wire diameter, gas type, and thickness to be welded, and the machine will adjust the wire speed automatically.
Added Mobility: The PR-205MV has an optional cart featuring a bottle bracket, accessory drawer and swivel casters, adding mobility and convenience.
Front Panel
The PR-205MV features an easy-to-use, automatic setup. The machine automatically sets all the necessary parameters with a quick spin of the dial. Take complete control by using the dials to manually select settings as well.
- Amperage/Wire Speed Display
- Indicators
- Voltage/Thickness Display
- Amperage/Wire Speed
- Weld Mode (Select Between MIG, Synergic MIG, TIG, Stick & Manual Modes)
- Thickness/Voltage
Compatible Welding Wires
The PR-205MV has 1 Spool and 1 Torch.
- Aluminum 0.8 - 1.0 dia.
- Steel 0.6 - 1.0 dia.
- Flux core 0.8 - 1.0 dia.
- Stainless Steel 0.8 - 1.0 dia.
- Brazing 0.8 - 1.0 dia.
Features
- 2 Torches
- 2 Wire Spools
- Pulsed Welding
- Continuous Mode
- Inverter Technology
- Preloaded Synergistic Programs
- Easy Feed Wire System
- Auto-Switching
Technical Specifications
| Input Power |
|
| No Load Voltage | 25VAC |
| Open-circuit Voltage | 25VDC |
| Current Range | 5 - 170A |
| Duty Cycle |
|
| Insulation | Type H |
| Protection Degree | IP22S |
| Dimensions | 18.9" x 15.1" x 8.7" (LxWxH) |
| Weight | 23 lbs |
