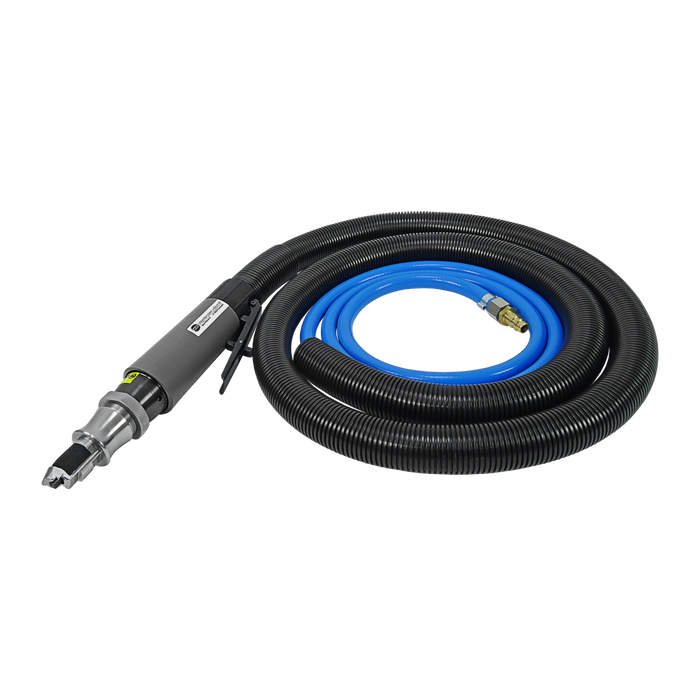

Metal Edge Cutter MEC600 | 640080

The ALL-IN-ONE tool for the application-secure cutting at the car body outer skin. Outstanding in use for doors, boot edges, mudguards, and roof edges.

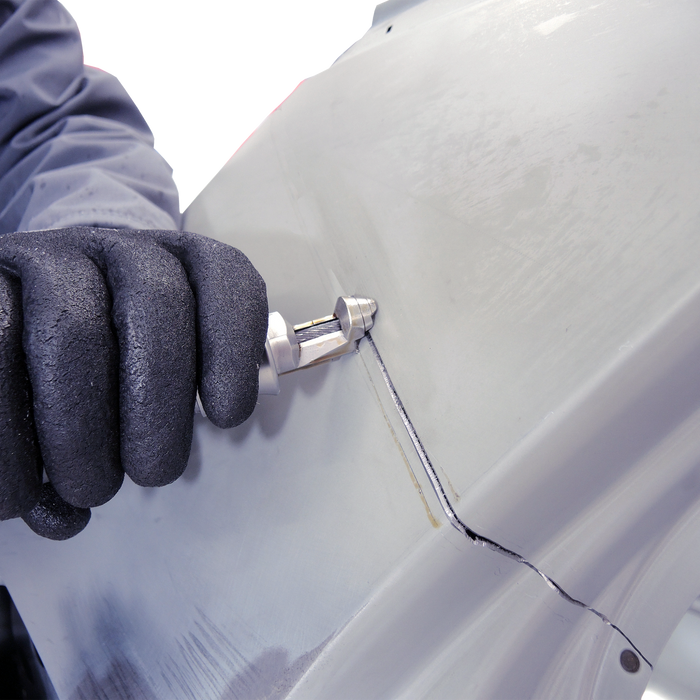

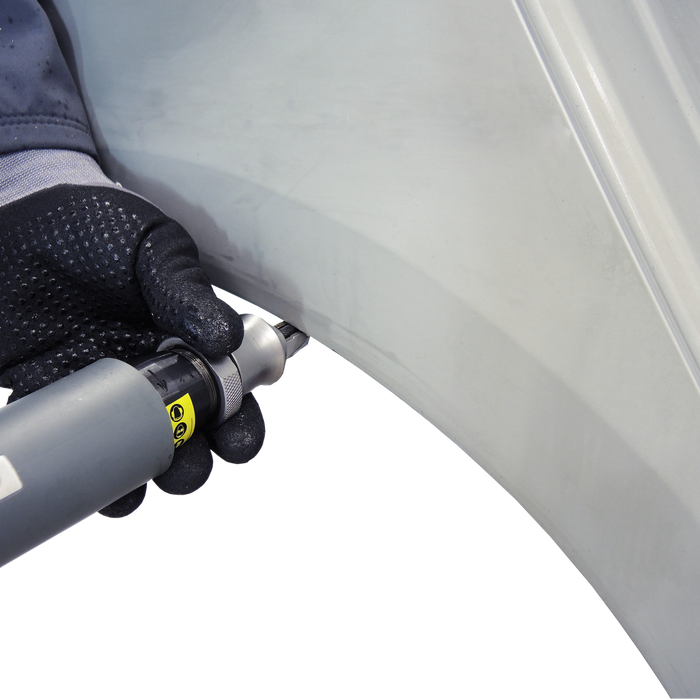

The pneumatic metal edge cutter MEC 600 has been developed for separating weld seams and for the secure and precise removal of the outer body skin. With two different cutting depths for aluminum and steel sheets, it ensures that only as much material is milled off at the wheel arch as necessary for the respective material, without damaging the inner sheet. The adjustable guide of the milling cutter allows for quick and easy adjustment of the MEC 600 to different angular positions of the body panels, while preserving the underlying sheet structure.

Features:

• Innovative HM special cutters for steel and aluminum
• High application safety when breaking laser weld seams (plasma torch seam)
• No sparks when used with cutting oil (BTR Fluid)
• No pre-heat treatment required on the body

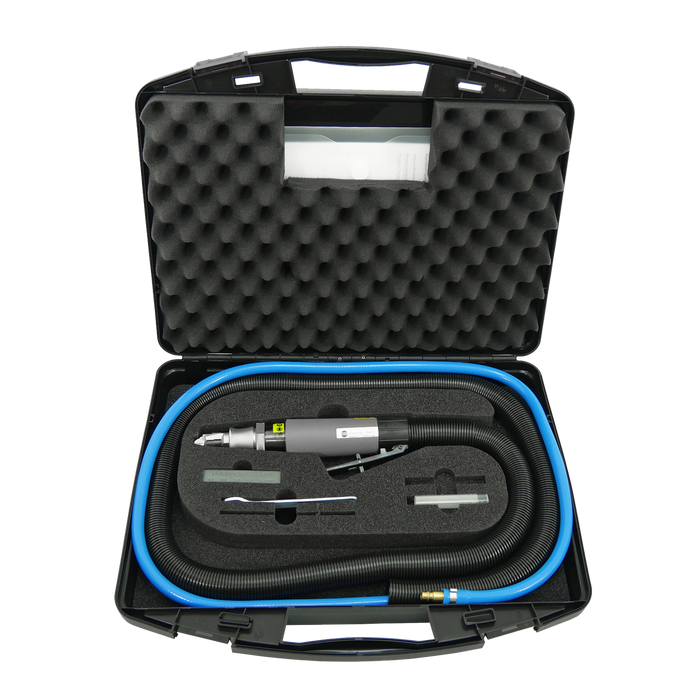

Delivery Contents:

• 1x milling pneumatic device

• 1x 640053 Machine attachment V2 | MEC 600
• 1x 640057 Locking nut | MEC 600

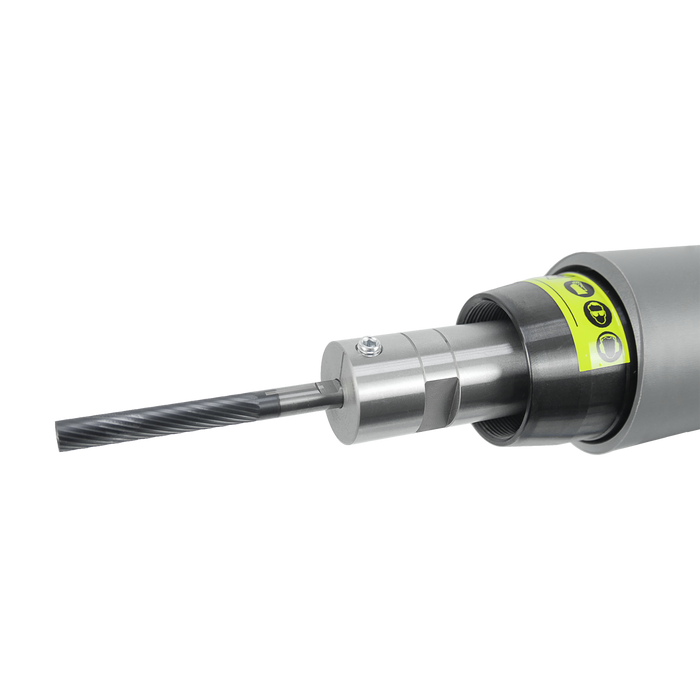

• 1x 640063 HM Flat head cutter | LongLife

• 1x 640052 Adjustment gauge V2 | MEC 600

• 1x 640051 Finger guard | MEC 600
• 1x Assembling tool
• 1x Instruction manual


Technical Data:

• Air consumption: 0.62 m³/min.
• Dimensions: 265 x 53 mm
• Noise level: 77 dB
• Diameter: 3.1 m (Hose), 6 mm (collet)
• Vibration: 3.6 m/s²
• Rotational speed: 20 rpm.
• Working temperature: 0°C-40°C
• Output: 600 W
• Length: 3.1 m (Hose)
• Working pressure: 6.3 bar
• Packing unit: 1 pc.

Metal Edge Cutter MEC600 Brochure Here
