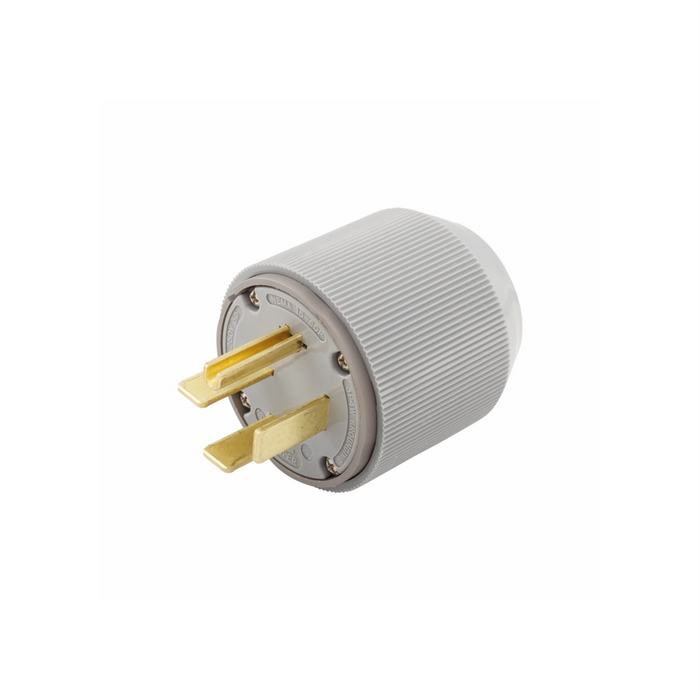

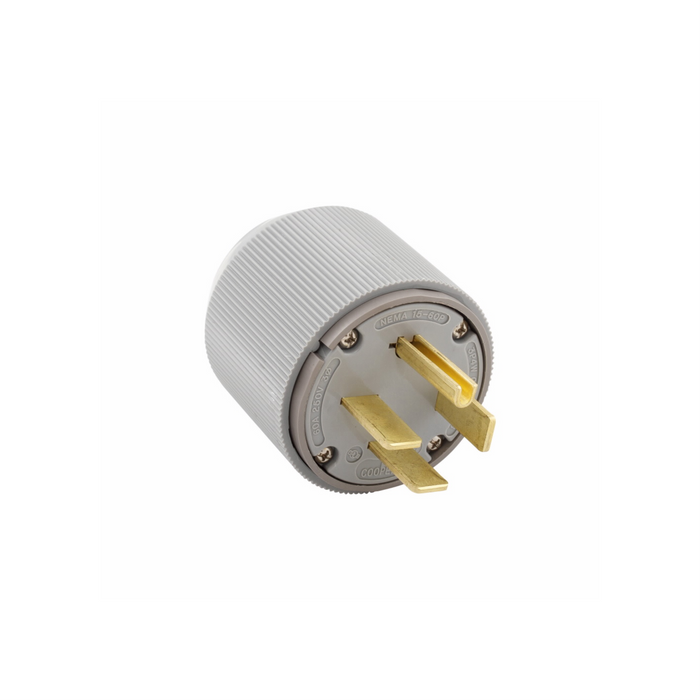

Eaton Arrow Hart Heavy Duty Auto Grip Plug, 15-60P | AH8462N
by EATON
Original price
$216.33
-
Original price
$216.33
Original price
$216.33
$216.33
-
$216.33
Current price
$216.33
Availability:
Only 2 left!
General Specifications
- Product Name: Eaton Arrow Hart extra heavy-duty auto grip plug
- Catalog Number: AH8462N
- UPC: 040893121741
- Product Length/Depth: 3.34 in
- Product Height: 3.12 in
- Product Width: 3.12 in
- Product Weight: 1.05 lb
- Certifications: UL. Federal Specification Classification 6233 01
Product Specifications
- Device type: Plug
- Color: Gray
- Face/body material: Nylon, Thermoplastic
- Wiring method: Back wire
- Material: Nylon
- Allowable wire size: #12-4 AWG
- Amperage Rating: 60A
- Number Of Poles: Three-pole
- Contact material: Brass
- Type: Plug
- Device grade: Extra heavy-duty industrial specification grade
- NEMA configuration: 15-60P
- Style type: Power, Straight body
- Design type: Straight blade
- Connection type: Screw
- Number of wires; 4
- Receptacle type: Three-pole, four-wire, grounding
- Voltage rating: 250V
- Application: Industrial, range, and dryer
- Torque rating: 30-35 lbf-inch
- Packaging type: Core pack
