XPac Starter Set for Self Piercing Rivets | Tool Box RS-03 | 703510

XSeries Catalogue

TESTED AND APPROVED BY FORD AND TESLA

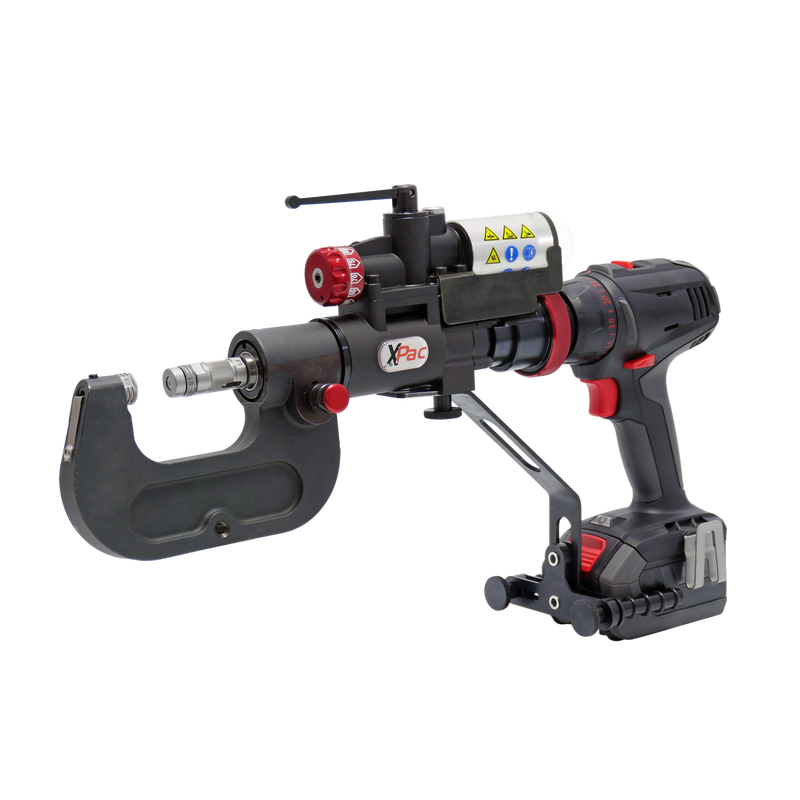

Compact riveting device, universally adaptable to all battery-powered screwdrivers brand tools* with a torque > 12.5 Nm* and a speed of 1250 - 1500 U/min. for processing e.g. semi-hollow self-pierce rivets.

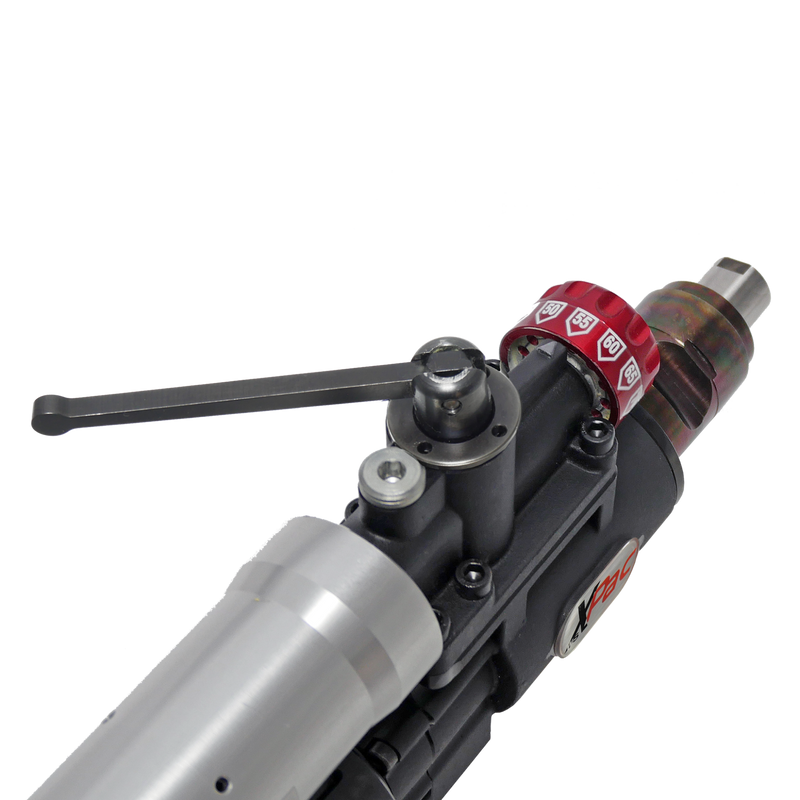

The XPac is equipped with direct force adjustment, the integrated automatic limit switch guarantees a safe application.

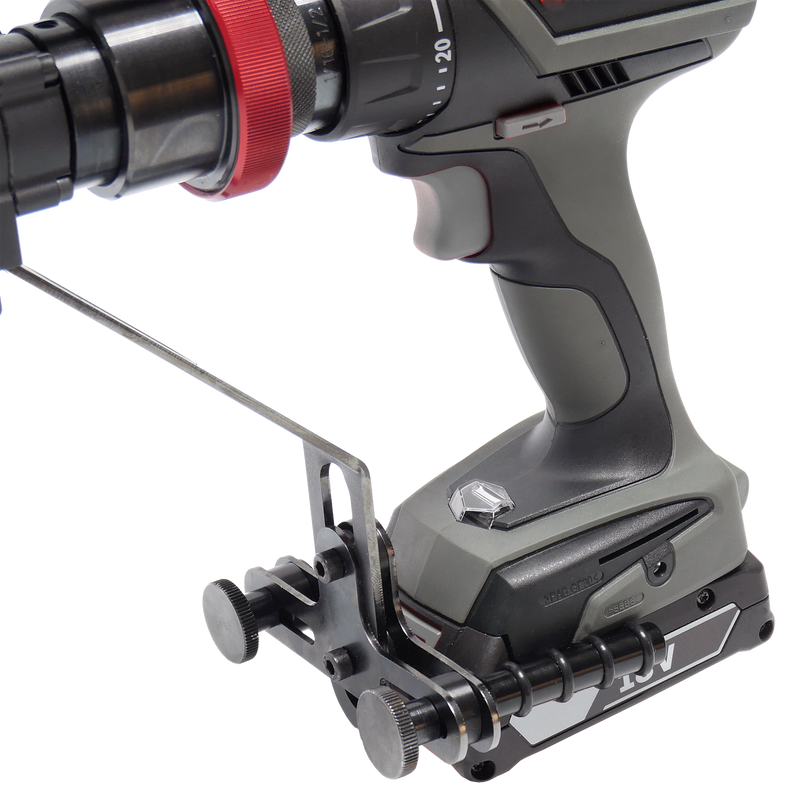

The XPac and the torque support can be mounted quickly, easily and without loss of time on the cordless screwdriver (actuator).

*with technical minimum requirement for a process-safe application

Features:

• The solution in riveting technology and car body repair.
• The new compact XPac is a mechanically driven hydraulic actuator for generating high pressure forces up to 80 kN for:
• Self Piercing Rivets
• Flow Form Rivets
• Full Punch Rivets
• Modularly expandable with XPress 800 Tool Boxes

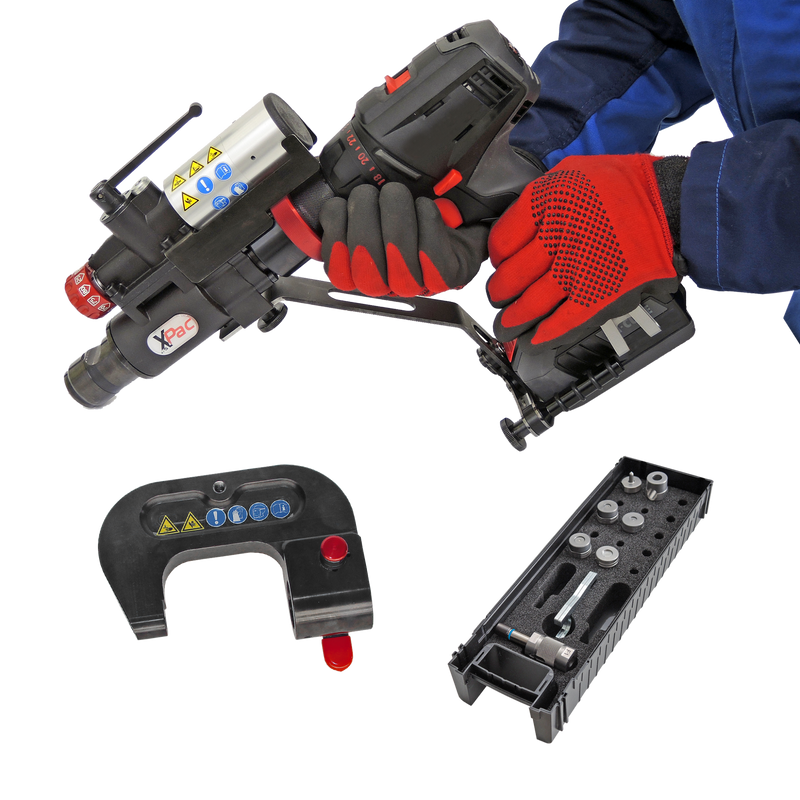

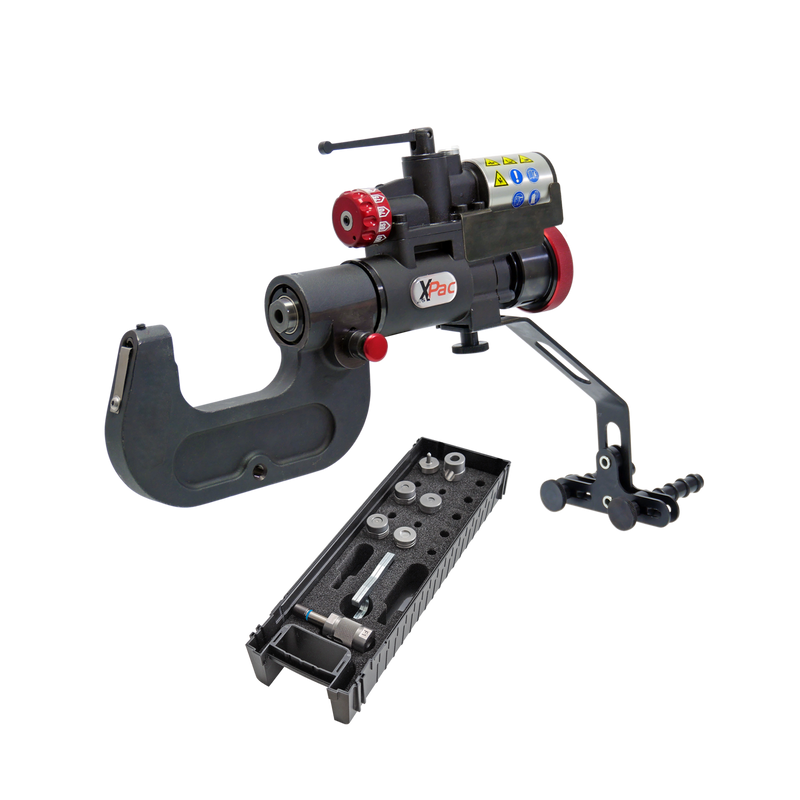

Delivery Contents:

• 1x XPac incl. torque support
• 1x C-arm GC 80/40
• 1x Tool Box RS-03
• 1x Handle red
• 1x Users manual

Technical Data:

• Packing unit: 1 set
• Stroke: 25 mm
• Traction / Press force: 25-80 kN
• Fuel Volume: 60 cm³
• Length x Width x Height: 240 x 62 x 130 mm
