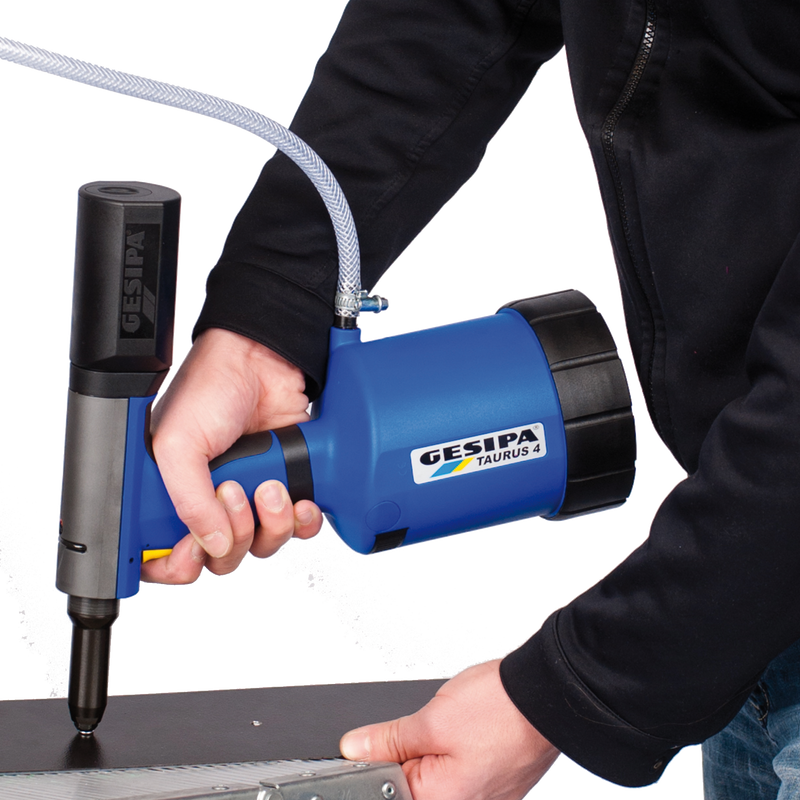

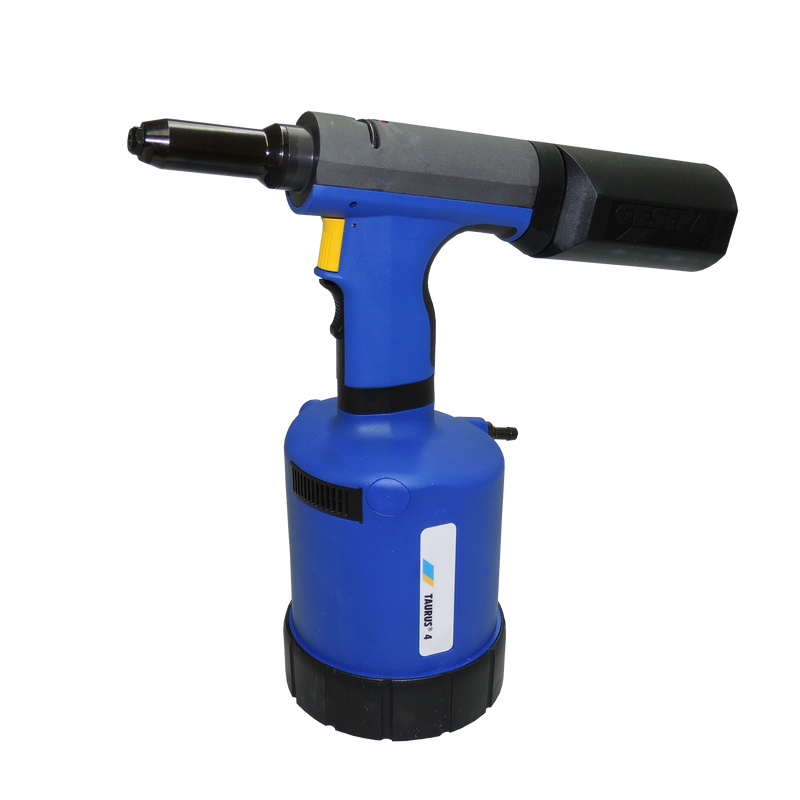

Taurus 4 Rivet Gun | 571110

23kN Setting Force | 19 mm Pull Stroke | Blind Rivets up to 6.4 mm Ø All Materials and BULB-TITE-Rivets up to 7.7 mm Ø All Materials (max. mandrel Ø 4.3 mm)

Pneumatic-hydraulic blind riveting tool - also for ultra-high-strength blind rivets up to 1,600N/mm2.
Economical design, perfect handling and well-conceived accessories make the Taurus 4 unique and flexible.

Features:

• the high setting force enables safe processing of quenched and tempered carbon steel blind rivets
• innovative buffer system for damping the tear-off impacts
• switchable rivet suction for vertical riveting applications
• innovative, active control of the feeding mechanism increases the tool life and maintenance times of the chuck jaws by a multiple
• option between compressed air connection to the rear or right side
• automatic over-pressure safety valve
• extendable suspension bracket, ergonomically designed handle with vibration-damping rubber pad
• automatic air-driven mandrel ejection into the removable collection container at the rear.

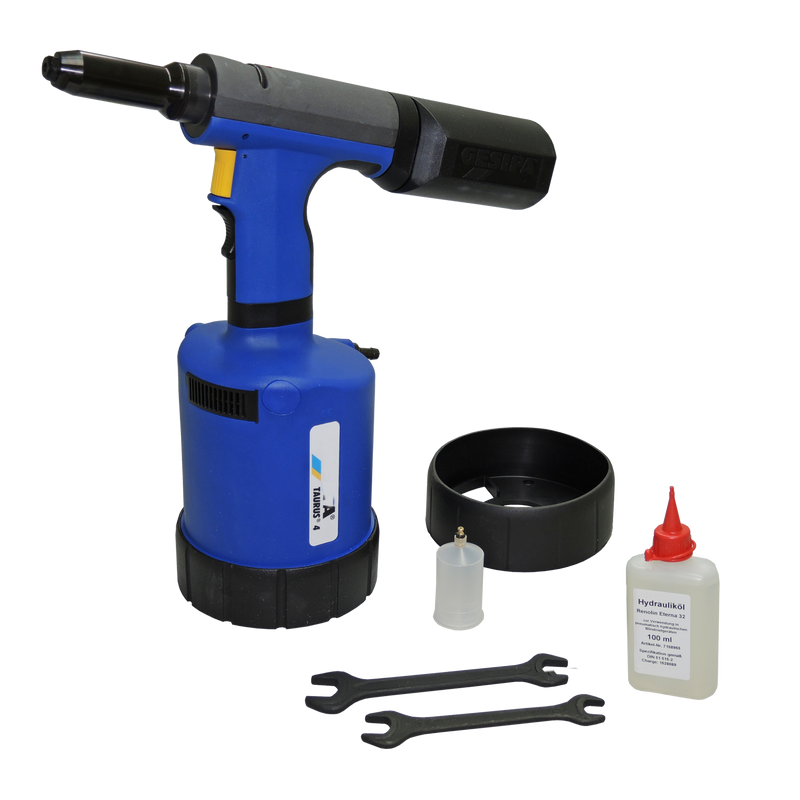

Delivery Contents:

• 1 x rivet gun
• 1 x hydraulic oil 100ml
• 1 x transport case

Technical Data:

• Packing unit: 1 pc.
• Working range in steel: 6.40 mm
• Operating mode: Compressed air
• Working pressure: 5-7 bar
• Air quality (ISO): ISO VG 32, 46
• Noise level: 79 db(A)
• Air consumption: 4.8 litre per rivet
• Stroke: 19 mm
• Length x Width x Height: 312 mm
• Certifications: CE
• Specifics: pneum.-hydraulic
• Fuel Volume: 30 cm³
• Traction / Press force: 20.000 N (setting force), 23.000 N (setting force)
• Vibration: < 2.5 m/s²
• Maximum mandrel diameter: 4.30 mm
• Working range: Blind rivets up to 6.4 mm Ø all materials and BULB-TITE-rivets up to 7.7 mm Ø all materials (max. mandrel Ø 4.3 mm)
