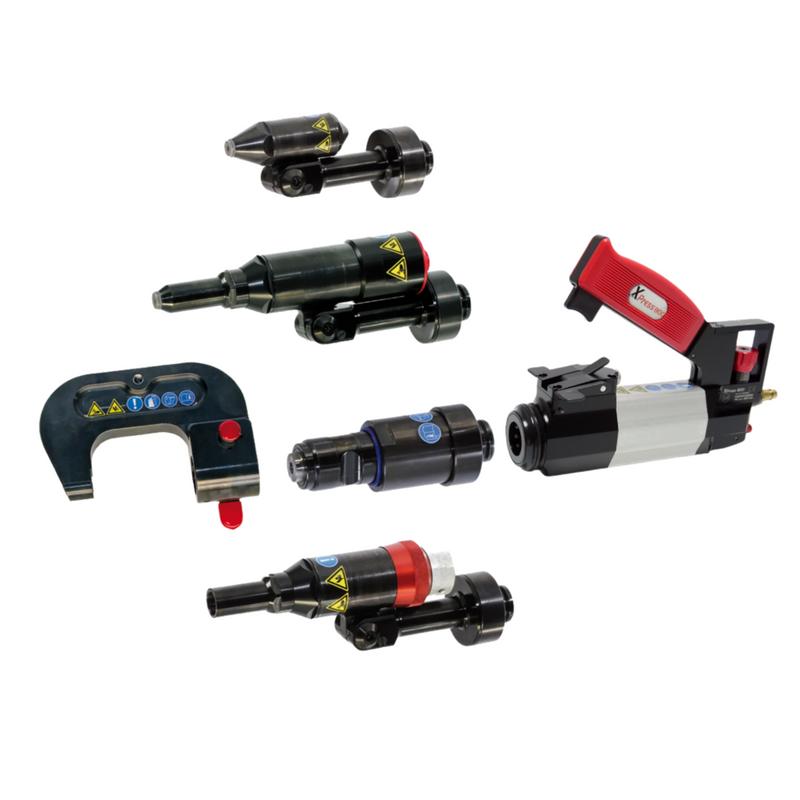

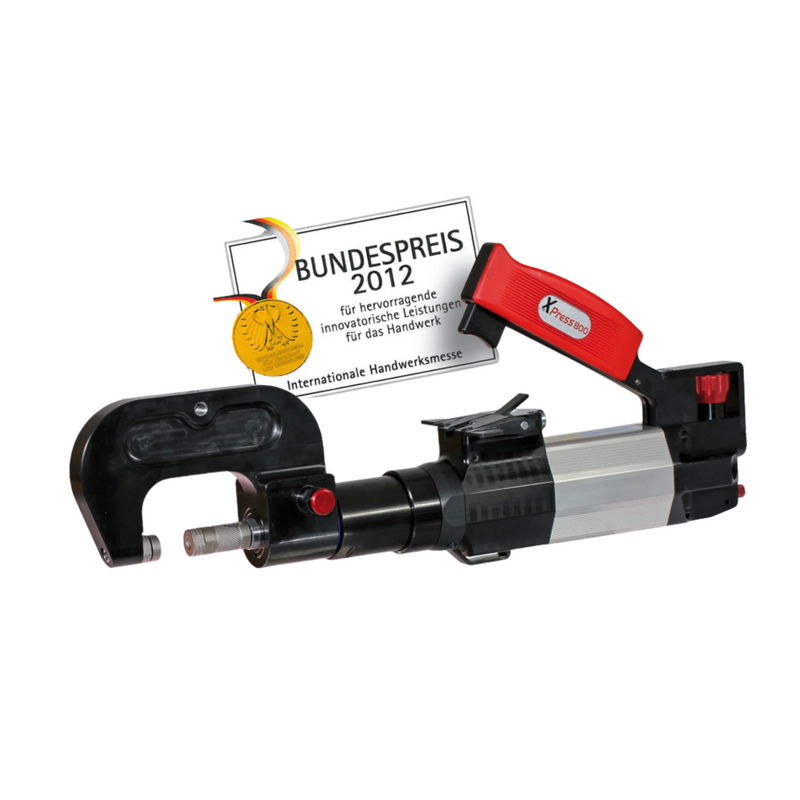

Riveting Tool XPress 800 | Full Set | 700002

The modular technology of the device allows the adaptation of many function tools for different applications. The device system can be optionally combined with a series of hydraulic cylinders and the designated C-brackets. The device system is supplemented by a multitude of special tools for customized applications.

Features:

• Modular Riveting Tool System with 250 kN (25 tons) pressing force
• XPress 800 riveting system - innovative technique for the professional car body repairer.

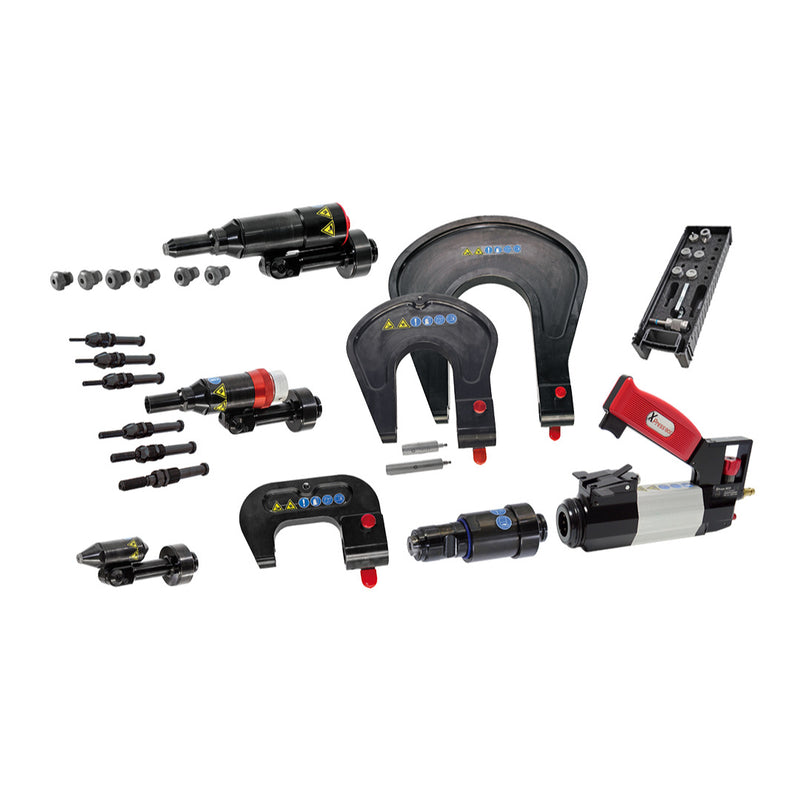

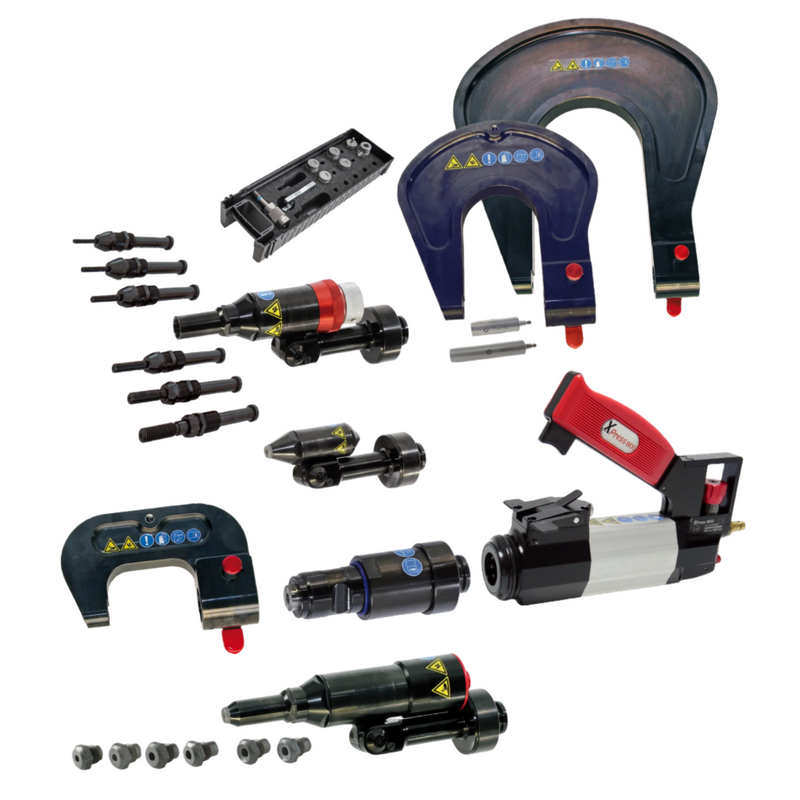

• Full Set: Self Piercing Rivets (SPR) - Flow Form Rivets (FFR) - Blind Rivets (BR) - Blind Rivets Nuts (BRN) - Solid Rivets (SR).

Delivery Contents:

• XPress 800 Basic unit
• XPress 800 cylinder SSC35/25
• Xpress 800 blind rivet adapter BR20
• Xpress 800 blind rivet adapter BR50
• Xpress 800 blind rivet nut adapter BRN50

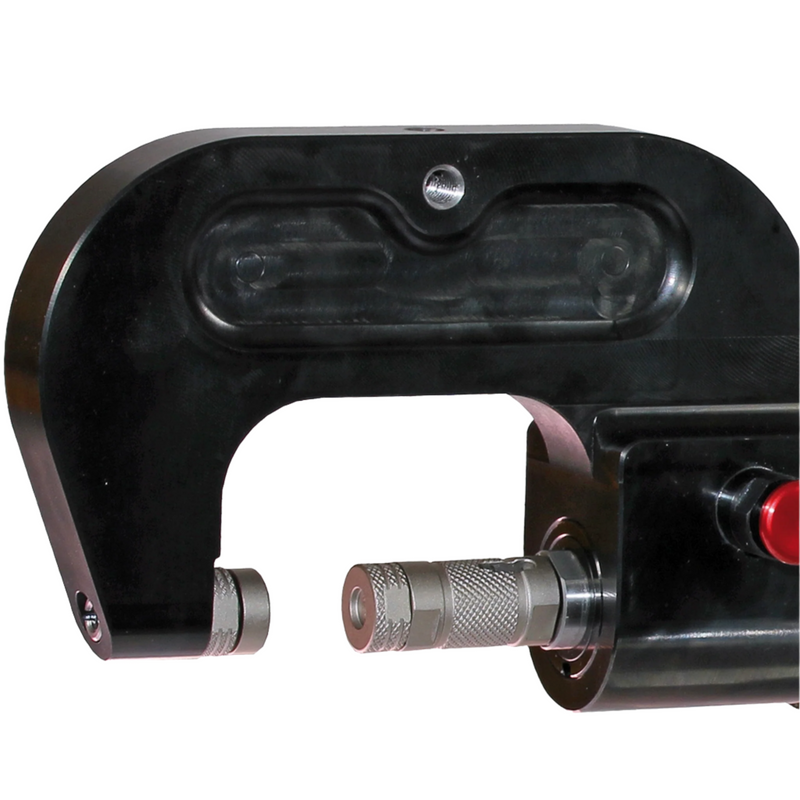

• XPress 800 C-arm GC 80/40
• XPress 800 C-clamp GC 80/120
• XPress 800 C-clamp GC 140/240
• XPress 800 Tool Box RS-03 BMW Die Kit
• XPress 800 Tool Box RS-04 R.V, Blind Rivet Nuts

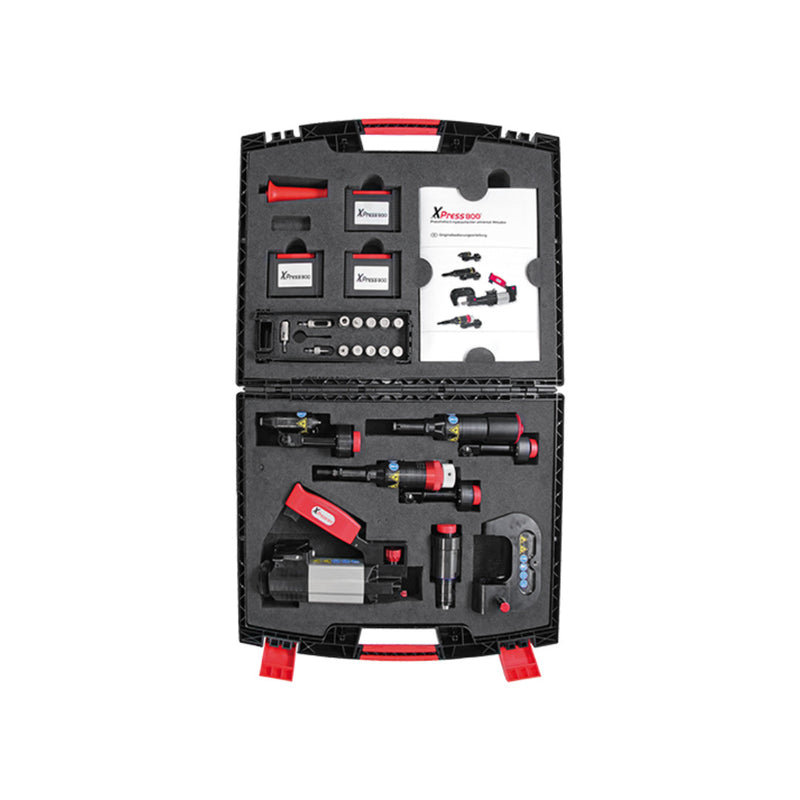

• XPress 800 Case
• XPress 800 Manual
• Maintenance kit
• Shipping and brokerage to Canada

Technical Data:

• Packing unit: 1 set
• Vibration: < 2,5 m/s²
• Air quality (ISO): ISO 8573-1
• Working pressure: 6 bar / 87 psi
• Noise level: 75 dB(A)
• Viscosity (OIL): 22-36 mm²/s (40°C)
• PB max.: 800 bar
• Fuel volume: 100 cm³
• Working temperature: 5-50 °C /41-122 °F
