Riveting Tool XPress 800 | Basic Set | 700000

XSeries Catalogue

The modular technology of the device allows the adaptation of many function for different applications. The device system can be optionally combined with a series of hydraulic cylinders and the designated C-brackets. The device system is supplemented by a multitude of special tools for customized applications.

Features:

• Modular Riveting Tool System with 250 kN (25 tons) pressing force
• XPress 800 riveting system - innovative technique for the professional car body repairer.
• Basic Set (self piercing rivet gun): to place self-piercing rivets (SPR) on flanges and to remove SPR.

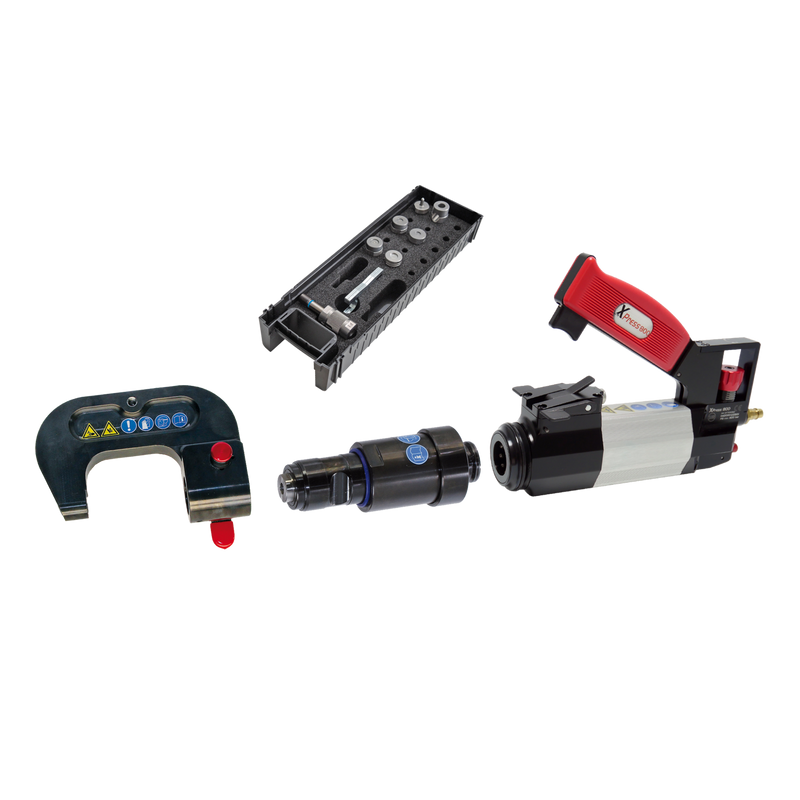

Delivery Contents:

• XPress 800 Power Pack
• XPress 800 cylinder SSC35/25
• XPress 800 C-arm GC 80/40
• XPress 800 Tool Box RS-03 BMW Die Kit

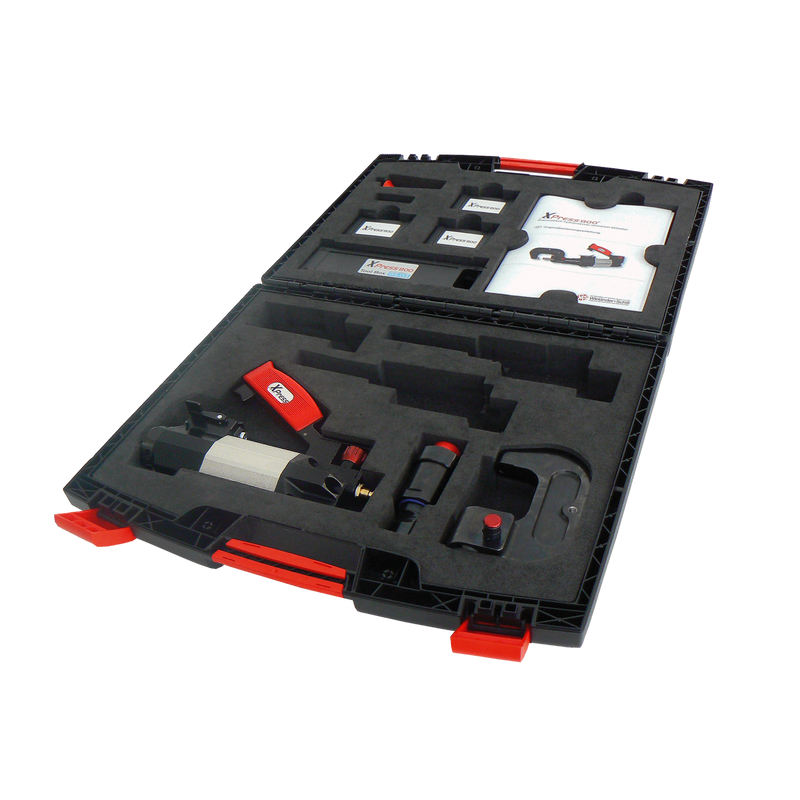

• Transport case
• Manual
• Maintenance kit
• Shipping and brokerage to Canada

Technical Data:

• Packing unit: 1 set
• Vibration: < 2,5 m/s²
• Air quality (ISO): ISO 8573-1
• Fuel Volume: 90 cm³
• Working pressure: 6 bar / 87 psi
• Noise level: 75 dB(A)
• Working temperature: 5-50 °C/41-122 °F
• Viscosity (OIL): 22-36 mm²/s (40°C)
• PB max.: 800 bar
