XPress Workstation JLR | Standard Set | S700058
Availability:
Out of stock
Cost & Delivery
For pricing, shipping, and delivery, fill out the 'Request a Quote’ form below. Please include your phone number in the message.

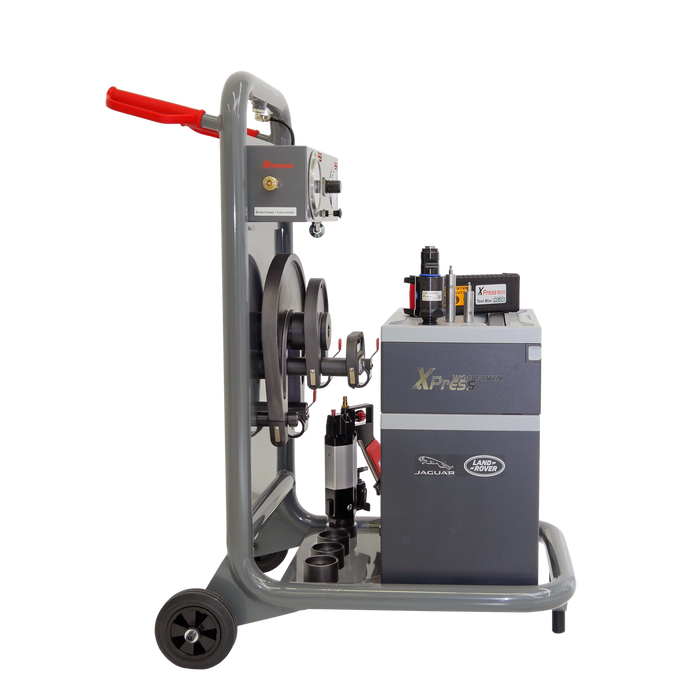

The heart of the XPress Workstation is the patented XLogic technology. This innovative system and the air tank integrated in the tubular frame of the trolley guarantee the user full process reliability* during the riveting process. Even if the air supply is unexpectedly interrupted, the riveting process can still be carried out reliably*.
NOTE: Process reliability during riveting is guaranteed by the use of the SSC 40 mm short stroke cylinder (included in delivery contents).
Benefits:

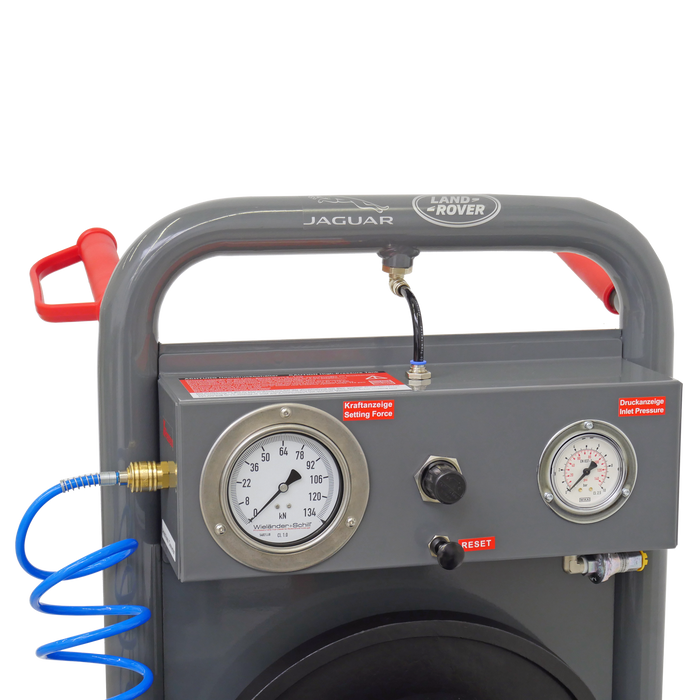

- Innovative XLogic pressure monitoring guarantees process reliability
- Integrated compressed air tank in tubular frame
- Press force from 10 - 80 kN
- Tractive force up to 80 kN (only in conjunction with BR80 blind rivet adapter - available as optional accessory)
- Complete pneumatic system
- 100% compatible with XPress modules / system
Delivery Contents:
- 1x Workstation incl. XLogic
- 1x Short stroke cylinder SSC 40 mm
- 1x XPress Power Pack
- 1x Tool Box RS-06 (JLR)
- 1x C-Arm GC 80/40
- 1x C-Arm GC 80/120
- 1x C-Arm GC 140/240
- 1x Compressed-air spiral hose 4 m
Technical Data:
- Packing unit: 1 pc.
- Length Width x Height: 1200 x 680 x 1310 mm
